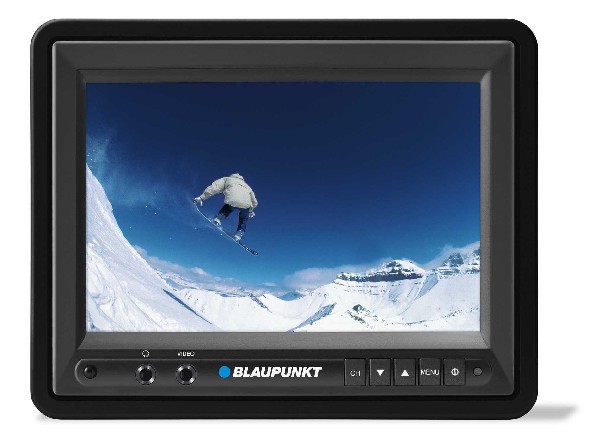

TFT-LCD Size (Diagonal) 5.8"(15.0 cm)
Aspect Ratio 16:9
Application Headrest
Generation 2
Product Plan / Sales Start Aug-03
Features
Power On/Off Yes
Volume Up/Down Yes
Menu Button Yes
Contrast Control Yes
Brightness Control Yes
Reverse Screen Yes
On Screen Display (OSD) Yes
Remote Control Yes
Speaker Built-in
Power Indicator Blue LED ON/OFF
Audio Output 3.5mm Stereo Jack (stereo)
Additional Video input 3.5mm Jack (mono)
IR sensor for Remote (angle) Yes (+/- 30 degrees)
IR transmitter of IR headphone (Overhead Only) No
IR Headphone transmitter angle N/A
Speaker Built-in
5 buttons(Ch, Menu, Down, Up, PWR) Yes
Open to Close N/A
LCD Pivot Location N/A
Dome Light N/A
Housing Color Dark Gray
Main Menu / ZOOM
FULL to display 16:9 screen
ZOOM1 to display 4:3 aspect-ratio
ZOOM-WIDE1 vertically extension. Zoom factor =8/7
Technical data
Screen Size (Diagonal) 5.8"(15.0 cm)
Pixel Format (pixels) 400 x 3(RGB) x 234(H)
Aspect Ratio 16:9
Contrast Ratio 150:1
Contrast Ratio (minimum) 60:1
Signal System NTSC/PAL (auto switch)
Power Supply 10.0V…16.0V
Video input level Composite Video, 0.7Vpp - 2.0Vpp, 75 Ohm
Audio input level 0-0.3 Vrms
Speaker Output 1 Watt, 280 Hz - 20 kHz
Headphone Output 40 dB gain @ 16 Ohms, 20 Hz - 20 kHz, THD 0.3%
Operating Temp 6-20 to + 60 Celsius
Storage Temp 6-30 to +80 Celsius
Electrical power consumption 10.0V…16.0V
Luminance, white / Backlight Life Time 400 cd/m2 / min. 10k hours
Display Method TFT Active Matrix LCD
Pixel Format (pixels) 400 x 3(RGB) x 234(H)
Back Light Cold Cathode Filament Tube
Viewing Area (W x H, mm) 127.2 x 71.84
Viewing angle left-right 60/60
Viewing angle top-bottom 60/30
Brightness (minimum) 300 cd/m2
Monitor Dimension (W x H x D, in) TBD
Monitor Dimension (W x H x D, mm) 165.0 x 122.0 x 26.7
Monitor weight (g) <400g
Connector 13 Pin DIN Cable
High Temp & High Humidity TBD
Luminance, white / Backlight Life Time 400 cd/m2 / min. 10k hours
Pixel Pitch (W x H, mm) 0.318 x 0.315
Number of Color Full Color
Response Time (msec) 33
Swivel angle left-right N/A
TFT-LCD Dimension (mm) 144.5 x 88.6 x 7.2
Power Consumption (W) 4.0
TFT -LCD Weight (g) 136
Thickness of the chassis (Overhead Only) N/A
Thickness of monitor 24mm
Accessories
Mounting Kit Yes (Monitor Bracket)
Extension Cable (5m, 13 PIN DIN) Yes
DIN to RCA Cable with PWR/GND Yes
Remote Control with battery Yes
Headphone N/A
Manual Yes
Monitor Release Key (Headrest Mon. Only) Yes
Mounting Screws N/A
Metal plate for fixation No
